filter

Inline type

SL series

Maximum working pressure:20.6MPa

High pressure small filter

株式会社ツカサの製品「高圧小型フィルタ」

Features

  • This is a high pressure joint type filter that supports a maximum working pressure of 20.6MPa.
  • A cylindrical filter element is built into the high pressure hose joint for hydraulic and water pressures with a diameter of 1/4 to 1/2, ensuring a sufficient filtration area despite its small size.
  • Two types of materials are available: steel for hydraulic use and stainless steel for water pressure.

Specification

Applicable fluid Water/Oil
Maximum working pressure 20.6MPa
Fluid/temperature range NBR -20℃~+80℃
Byton Viton -20℃~+150℃

Material

Body: SUS304/SS400
Element: SUS304/SS400
Seal: NBR / Viton / EPDM

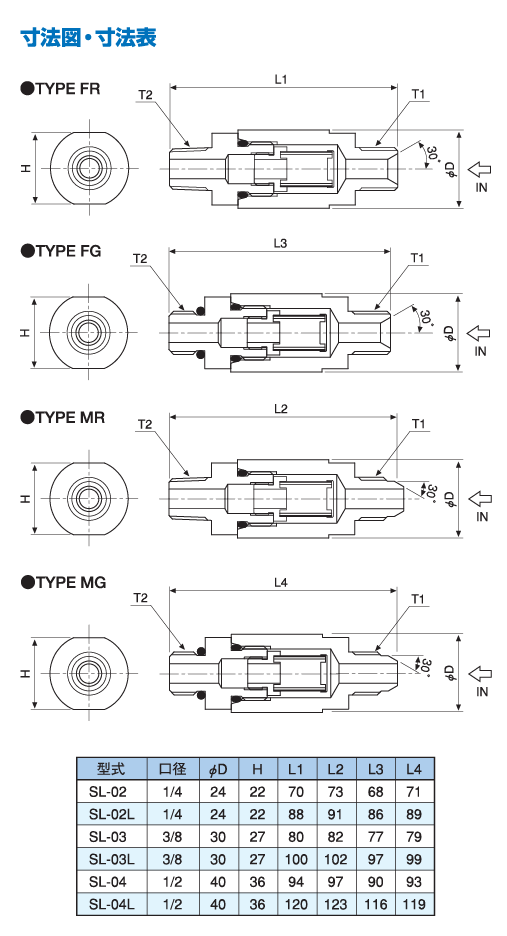

Blueprint
