filter
Inline type
MFA series
Maximum working pressure:7MPa
Manifold type filter
*Precautions for use
●It may not be suitable for fluids with particularly high viscosity, so please consult us.
●It may not be suitable for fluids with a lot of strong magnetic contamination, so please consult us.
Features
- Achieves centralized management of filtering.
- Differential pressure management is possible using sensors.
- Clamp piping allows for easy disassembly and cleaning.
- Suitable for a wide range of fluids and temperatures.
Specification
| Fluid used | Fluids that do not corrode SUS304/A5052, such as water and oil |
|---|---|
| Maximum working pressure | 7MPa |
| Operating temperature | -20℃~90℃ (no condensation) |
Sensor electrical specifications
| Power supply voltage | DC5～24V |
|---|---|
| Output specifications | NPN open collector |
| Output current | 15mA MAX |
| Current consumption | 4mA MAX |
| Cable length | 1m |
Material
Wetted parts material:SUS304/A5052

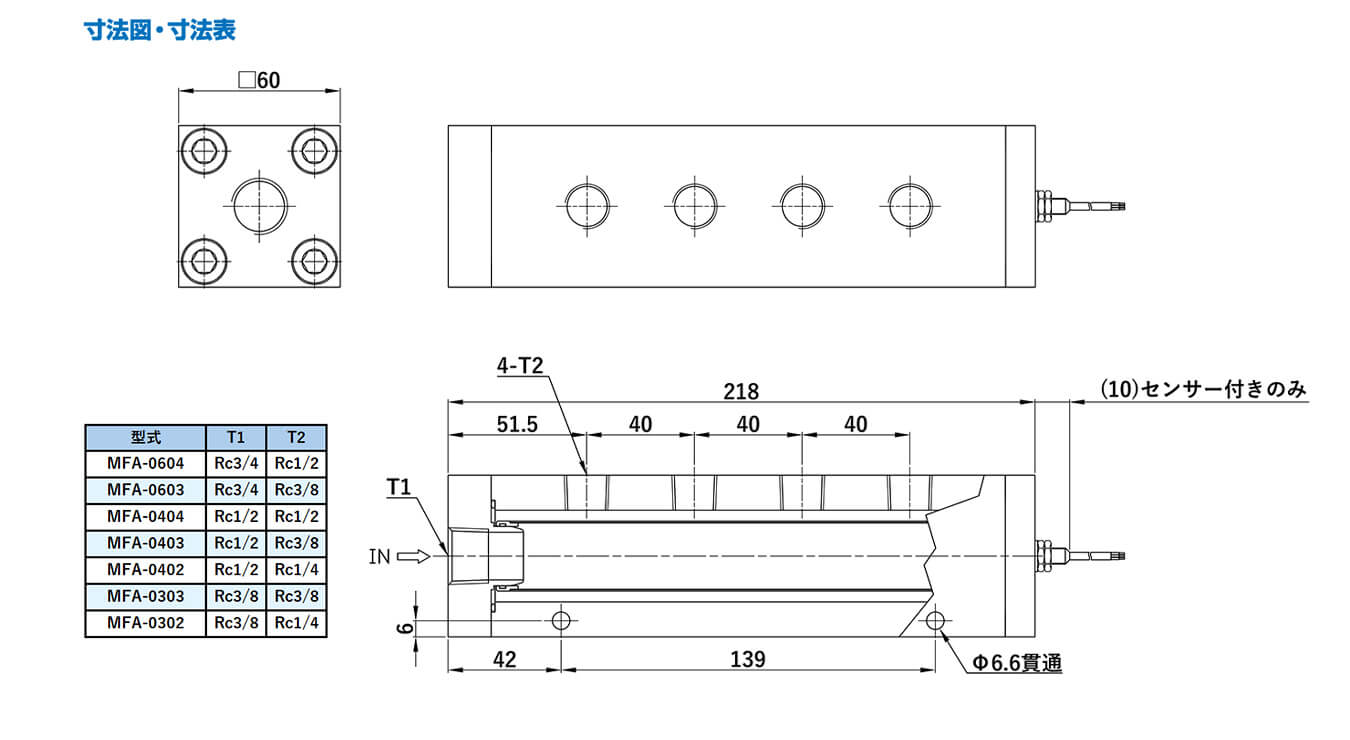

Blueprint
