filter

fitting type

HFW series

Maximum working pressure:1MPa

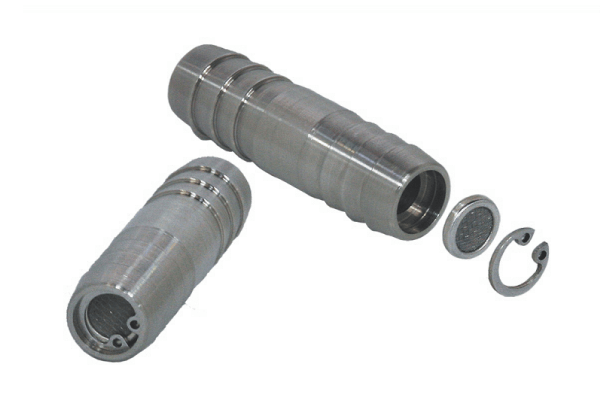

Double nipple type filter

株式会社ツカサの製品「両ニップル型フィルタ」

Features

  • Small coin filters are built into both nipples and can be easily installed between the hoses, allowing filtration at any location.
  • The filter can be replaced and cleaned by removing the snap ring.

Specification

Fluid used Oil, water, etc.
Maximum working pressure 1MPa
Operating temperature -50℃~+180℃

Material

SUS304

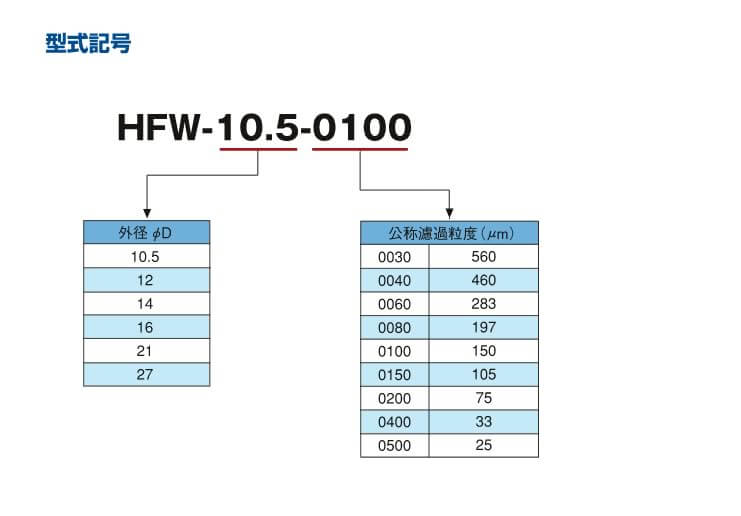

Blueprint
