filter
Inline type
sanitary type
CFA series
Maximum working pressure:1MPa
Line filter with differential pressure sensor
※使用上のご注意
●Before replacing the element, release the residual pressure inside the case.
●It may not be suitable for fluids with particularly high viscosity, so please consult us.
●Please consult us as it may not be suitable for fluids with a lot of strong magnetic contamination.
Features
- Differential pressure control is possible with sensors.
- Magnetic sensor allows differential pressure control even in remote areas.
- Clamp piping allows for easy disassembly and cleaning.
- Suitable for a wide range of fluids and particle sizes.
Specification
| Fluid used | Fluids that do not corrode SUS304/SUS316, such as water and oil | |
|---|---|---|
| Maximum working pressure | 1MPa | |
| Operating temperature (with sensor) | -20℃～90℃(No condensation) | |
| Operating temperature (without sensor) | NBR | -20～120℃ |
| FKM (Byton) | 0～150℃ | |
| EPDM | -20～120℃ | |
| FFKM(Perflo) | 0～150℃ | |
Sensor electrical specifications
| Power supply voltage | DC5～24V |
|---|---|
| Output specifications | NPN open collector |
| Output current | 15mA MAX |
| Current consumption | 4mA MAX |
Material
Wetted parts material:US304/SUS316

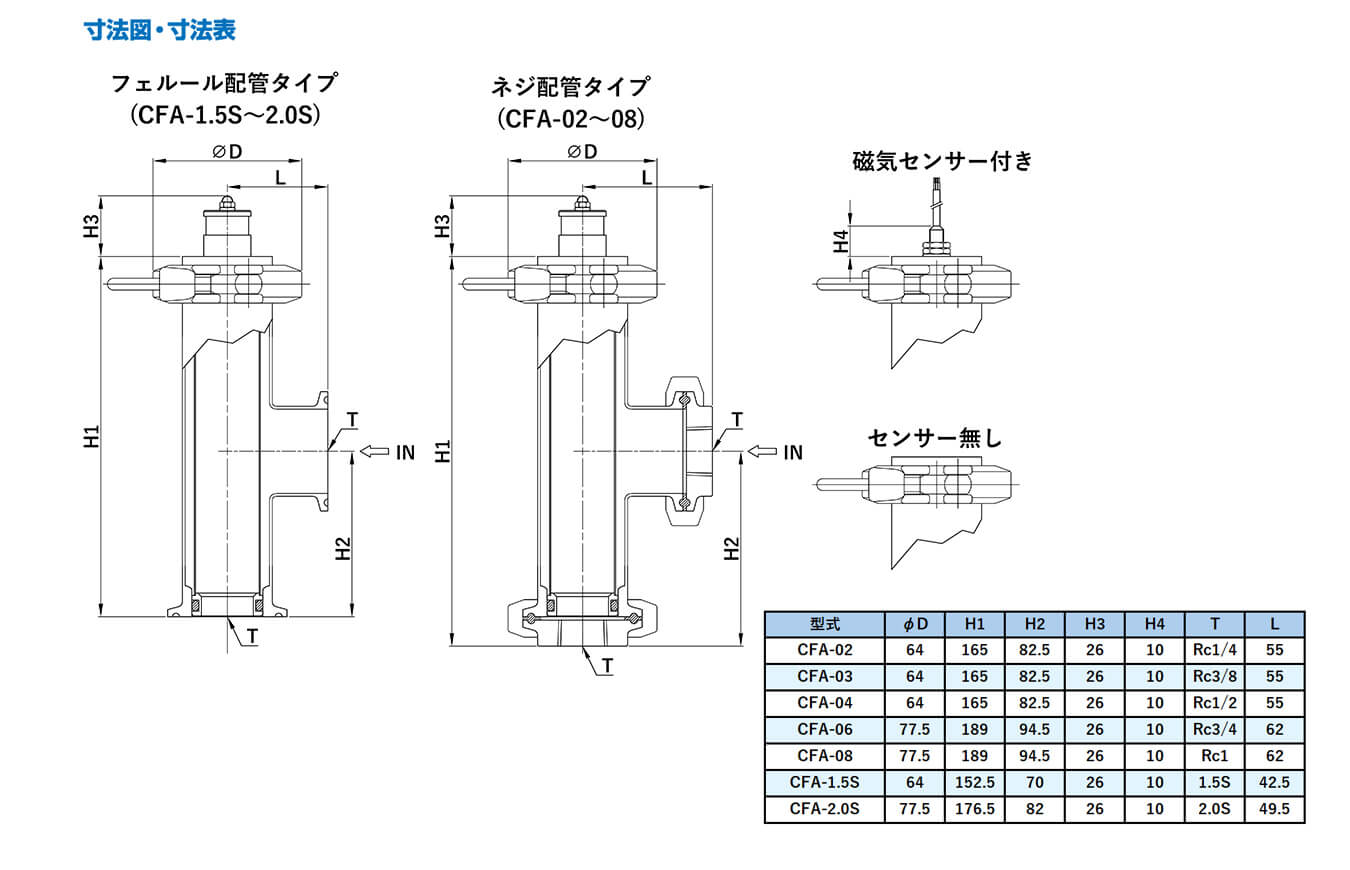

Blueprint
