filter

mini strainer type

MSF/MSM series

Maximum working pressure:2MPa ※型により変動

Mini strainer

株式会社ツカサの製品「ミニストレーナ」

Features

  • Super compact layout possible.
  • The shape makes it easy to install even in the back of the device.
  • High heat resistance due to sealless structure.
  • Easy to attach to fluid equipment with two types of screw types.

Specification

Fluid used Fluids that do not corrode SUS304, such as water, air, steam, gas, and oil
Operating temperature -20℃~150℃
Differential pressure strength M05 M08 M10 M12 M16
Differential pressure strength 2MPa 1MPa

Material

SUS304

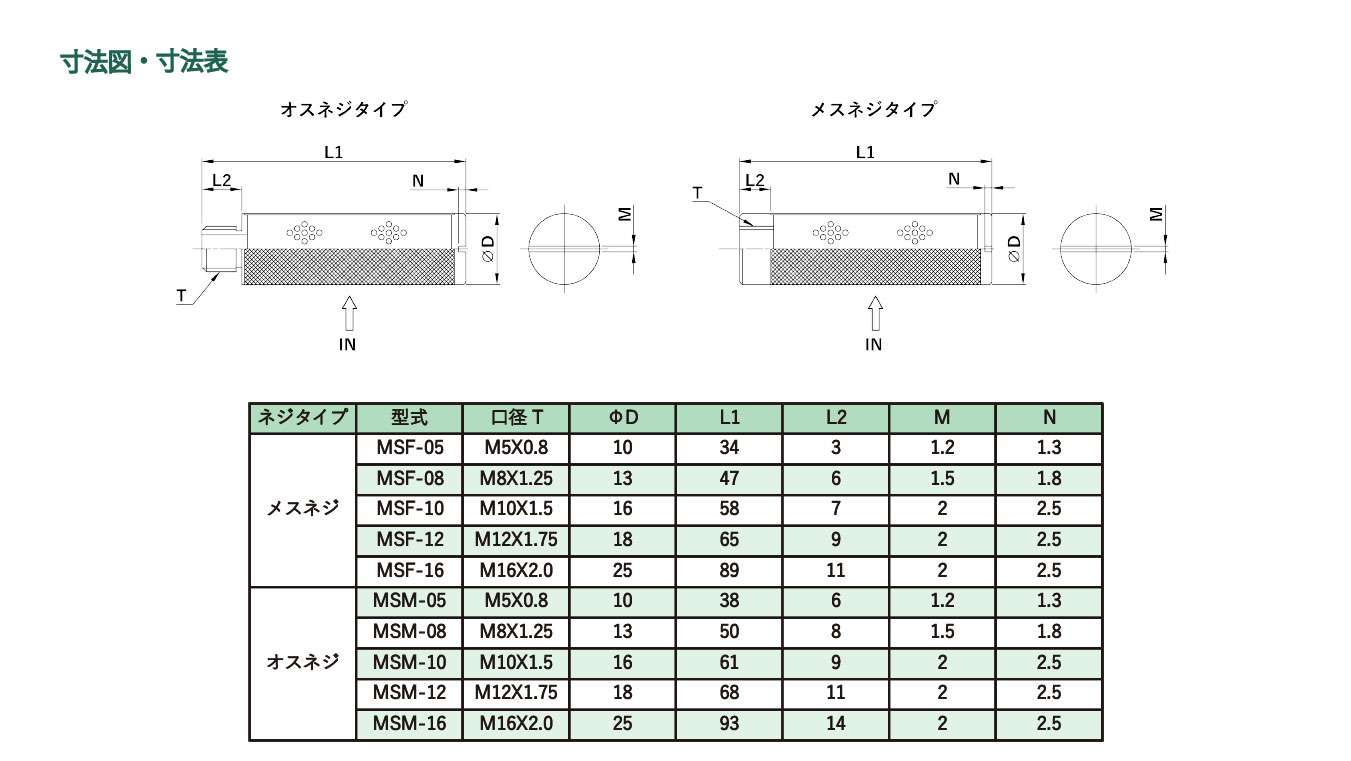

Blueprint
