filter

small coin type

CP series

Small filter with O-ring

株式会社ツカサの製品「Oリング付き小型フィルタ」

Features

  • Small and thin, it can be compactly built into various fluid devices.
  • By attaching an O-ring to the body of the coin filter, easy installation to the housing has been achieved.
  • The filter itself has a simple structure consisting of only a case and mesh, and can be used even in high temperature ranges by selecting the material for the O-ring.
  • Case material can be selected from two types: brass and stainless steel.

Material

Case: C3602/SUS304
Screen: SUS304/SUS316
O-ring: NBR / Viton / EPDM
*For other materials, please contact us.

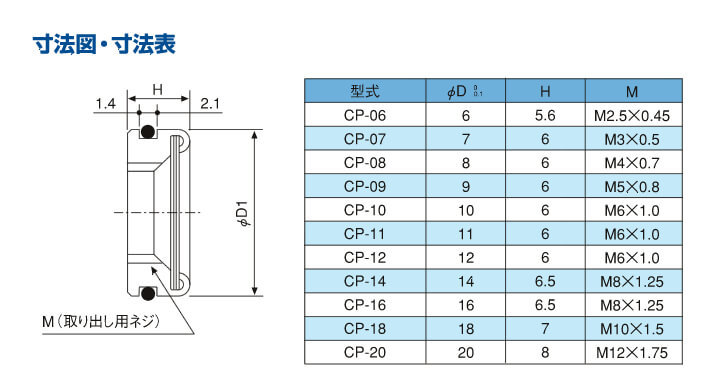

Blueprint
