filter

sanitary type

FC series

Ferrule with built-in disc filter

株式会社ツカサの製品「ディスクフィルタ内蔵フェルール」

Features

  • Since the large disc filter is built into a thin container, it is possible to obtain a large filtration area while saving space.
  • Clamp connection allows for easy filter replacement.
  • Four types of connection sizes are available: 1.5S to 3S.
  • You can choose between a flat type FC and an FCW with a large filtration area.

Material

Main body/element: SUS304 / SUS316
Seal: NBR / Viton / Silicon / EPDM

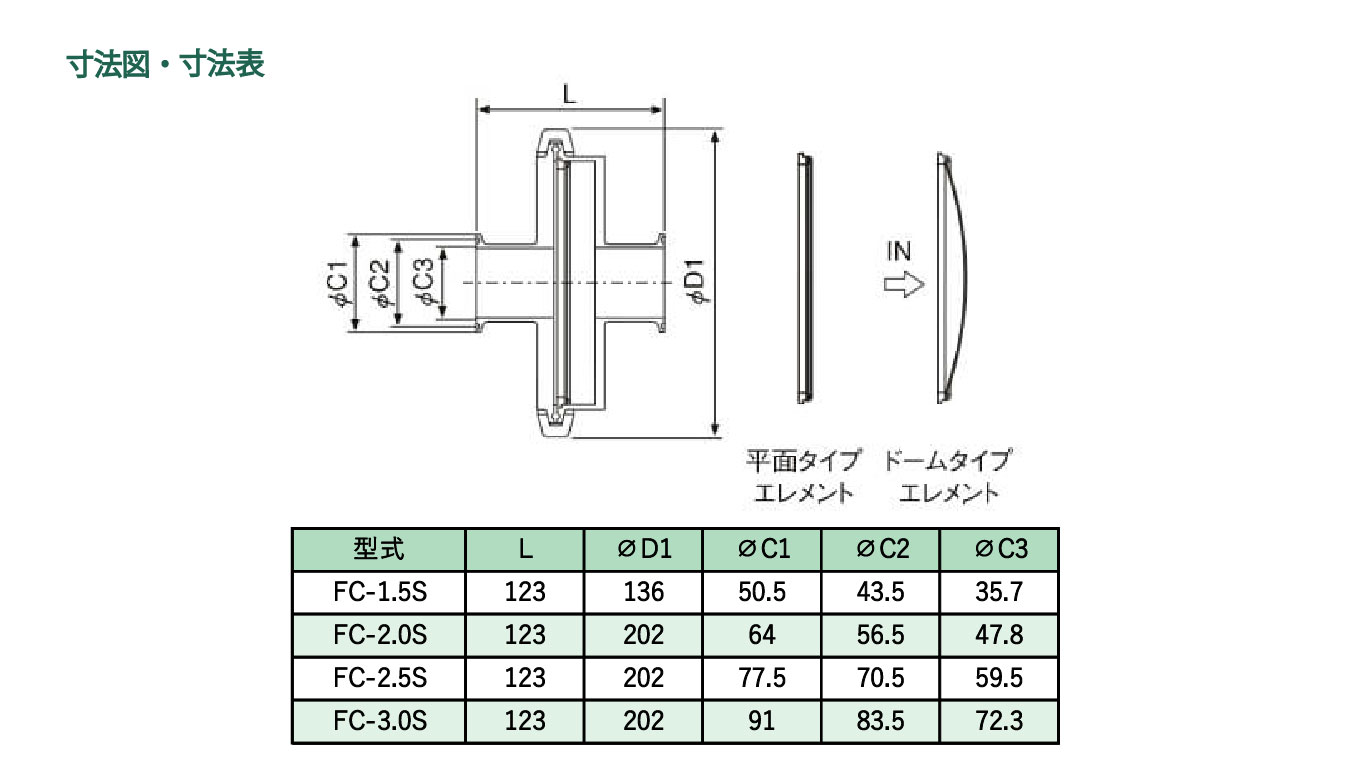

Blueprint
