filter
sanitary type
strainer type
FFA series
Maximum working pressure:1MPa
Sanitary pipe strainer
Features
- Easy installation into existing sanitary piping.
- Equipped with a bypass valve to prevent accidental damage.
- Special packing available as an option.
- A special case is available as an option.
Specification
Filter specifications
| Fluid used | Fluids that do not corrode SUS304/SUS316, such as water and oil |
|---|---|
| Maximum working pressure | 1MPa |
| Operating temperature | 0.2MPa |
Packing specifications
| Operating temperature | NBR | 0℃～80℃ |
|---|---|---|
| FKM (Byton) | 5℃～140℃ | |
| EPDM | 5℃～120℃ | |
| PTFE | 5℃～150℃ | |
| Silicon | 0℃～100℃ |
Material
SUS304/SUS316

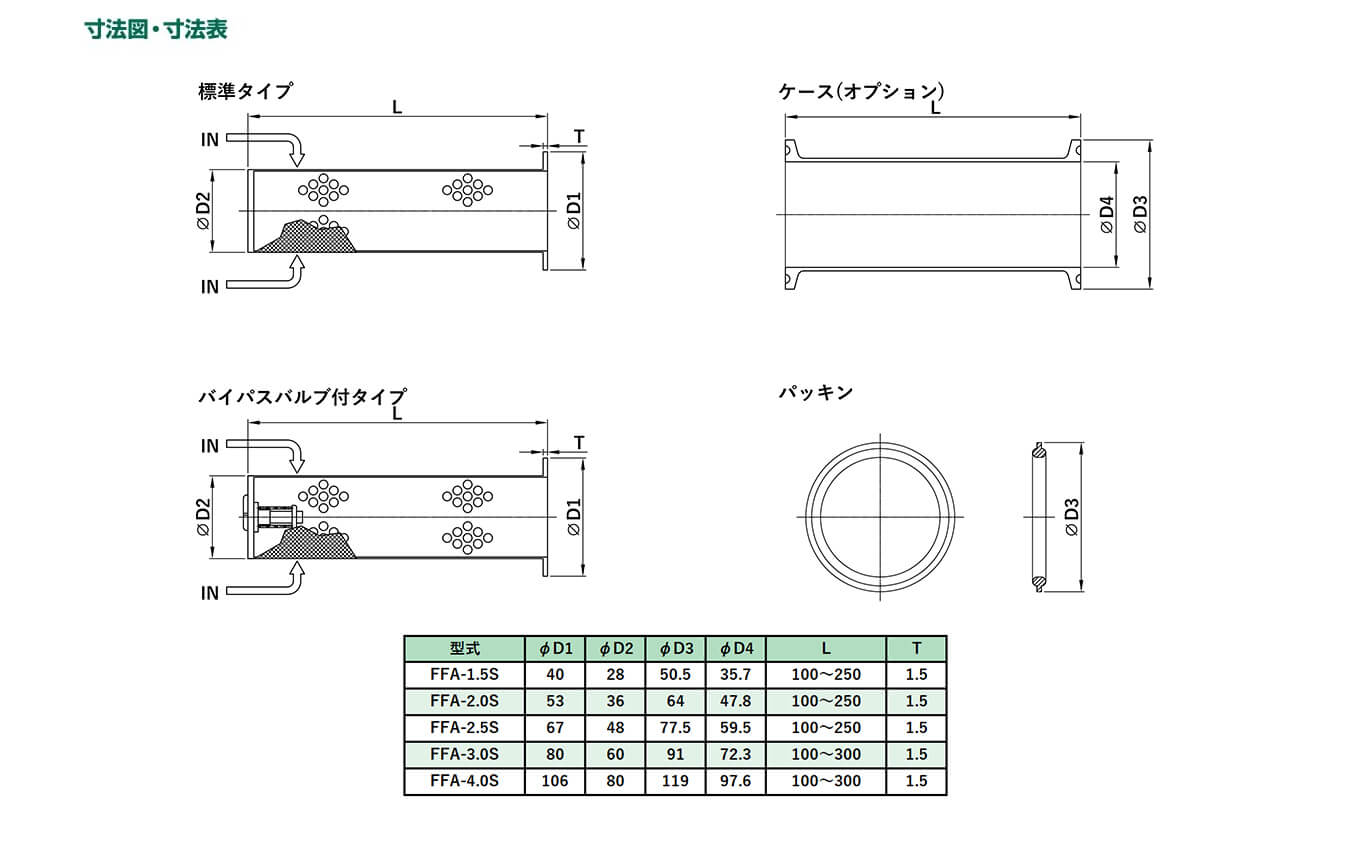

Blueprint
